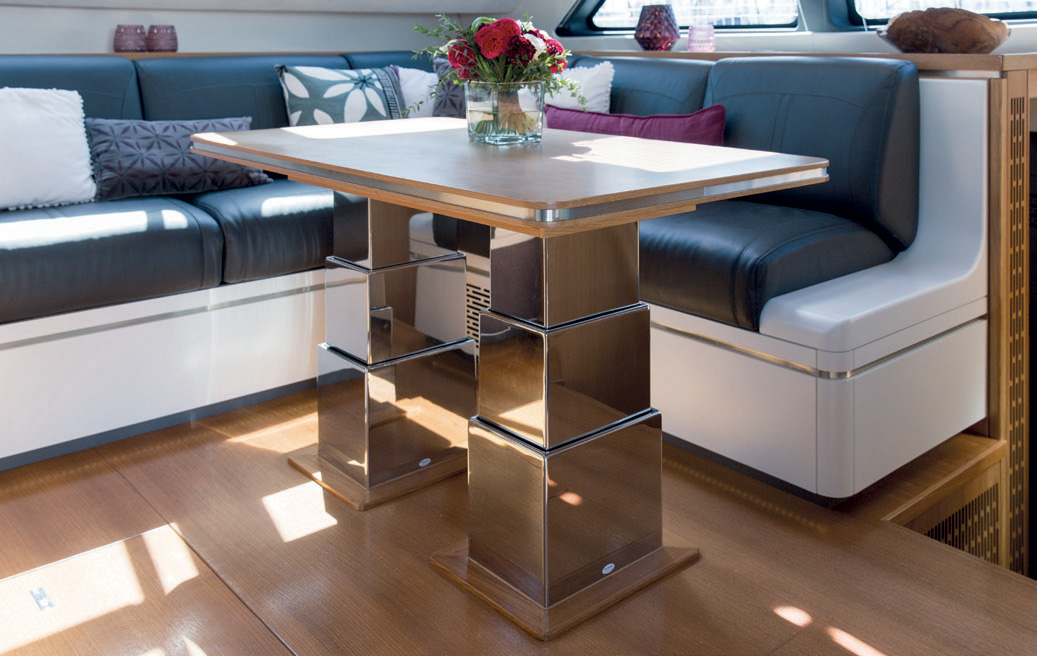

3-part stainless steel table lifts

This stainless steel system allows a table top to be raised and lowered by motor, both indoors and outdoors.

• This solution, made from 316 stainless steel with a mirror-polished finish, allows, for example, a high table to be converted into a bed
  or as a coffee table.
• Maximum load capacity: 100 kg.

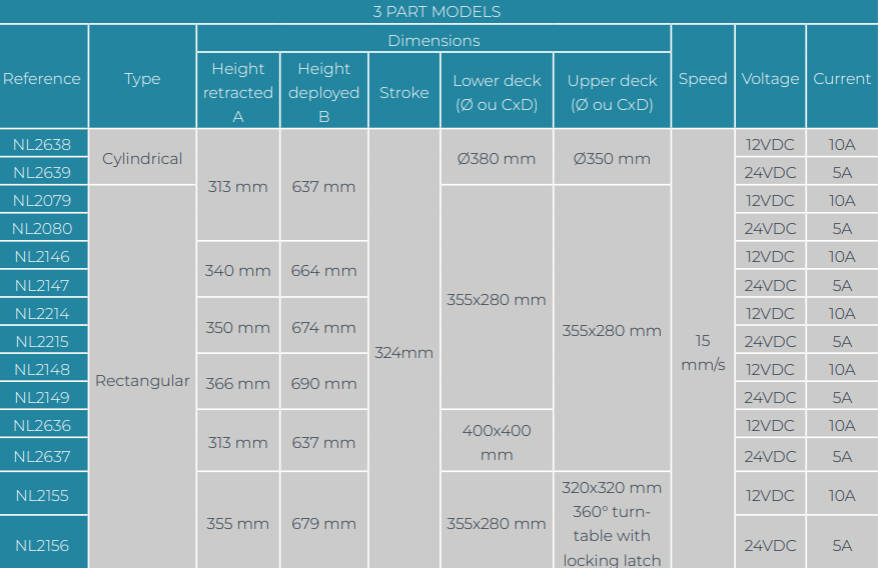

• Height when retracted (A) :
• 313 mm (NL2638, NL2637)
• 340 mm (NL2146, NL2147)
• 350 mm (NL2214, NL2215)
• 366 mm (NL2148, NL2149)
• 355 mm (NL2155, NL2156)
• Extended height (B) :
• 637 mm (NL2638, NL2637)
• 664 mm (NL2146, NL2147)
• 674 mm (NL2214, NL2215)
• 690 mm (NL2148, NL2149)
• 679 mm (NL2155, NL2156)
• Stroke : 324 mm (for all rectangular models)
• Lower tray (Ø or LxD) :
• Ø380 mm (NL2638, NL2639)
• 355×280 mm (NL2079, NL2080, NL2146, NL2147, NL2214, NL2215, NL2148, NL2149, NL2155, NL2156)
• 400×400 mm (NL2636, NL2637)
• Top plate (Ø or LxD) :
• Ø350 mm (NL2638, NL2639)
• 355×280 mm (NL2079, NL2080, NL2146, NL2147, NL2214, NL2215, NL2148, NL2149)
