TV lifts - Outdoor ceiling mounted

This system allows a flat-screen television, which is concealed within the ceiling, to be lowered automatically. The television can also be swivelled to the right and left.

• Supply voltage: 24V DC as standard.
• Designed for outdoor use, for example for installation in a hardtop.
• Radio remote control is an option.
• Automatic locking system in the closed position to protect the device and the screen whilst navigating.
• A system fitted with a safety feature to stop movement in the event of unexpected forces acting on the system (e.g. an obstacle).
• The system can be reversed (the TV screen can be seen from the ceiling when folded away).
• Our range of ceiling-mounted TV lifts for outdoor use is available in two designs.

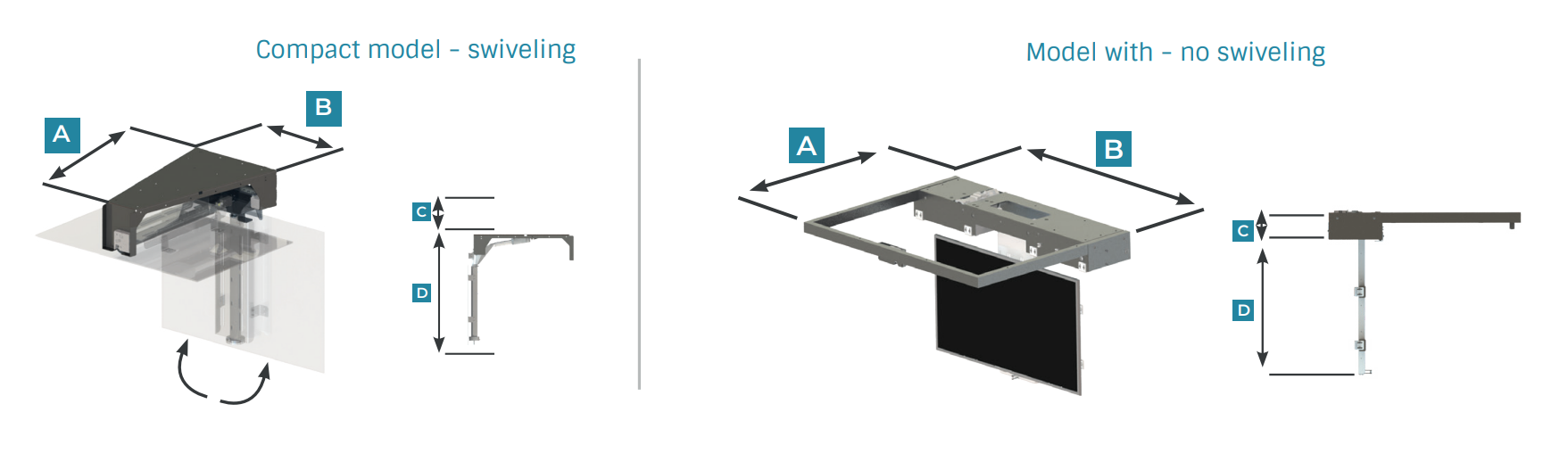

• NL3153 (CLTV 32″)
• A: 672 mm
• B: 375 mm
• C: 189 mm
• D: 535 mm
• Height: 454 mm
• Thickness: 72 mm
• Width: No maximum
• NL3325 (CLTV 40″)
• A: 800 mm
• B: 375 mm
• C: 200 mm
• D: 674 mm
• Height: 605 mm
• Thickness: 82 mm
• Width: No maximum
• NL3277 (CLTV 43″)
• A: 955 mm
• B: 1,090 mm
• C: 154 mm
• D: 622 mm
• Height: 605 mm
• Thickness: 78 mm
• Width: 1,076 mm
