Hinges for flat top grill

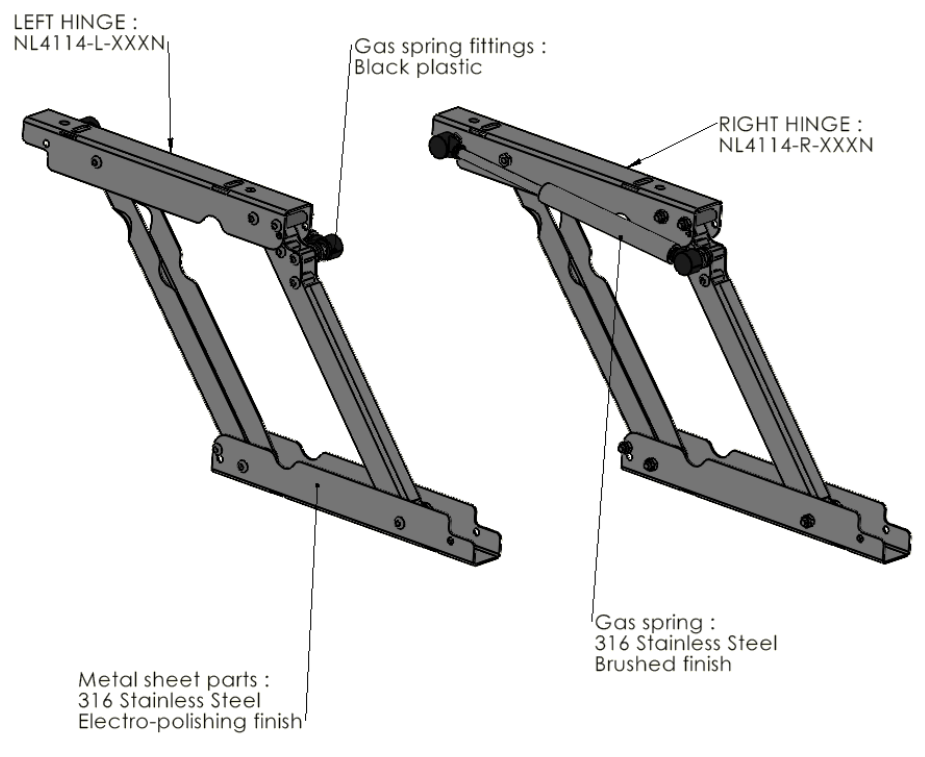

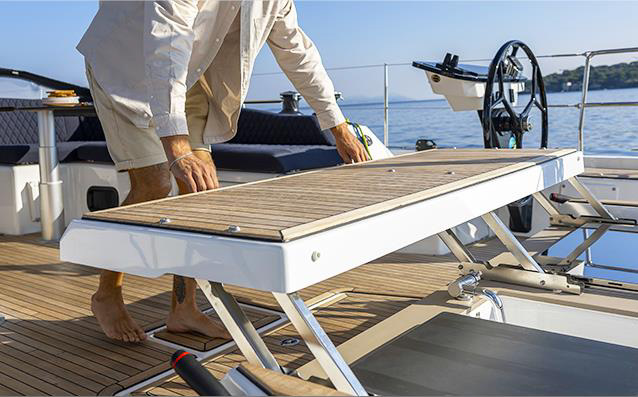

This pantographic hinge makes it possible, for example, to turn a grill lid into a serving dish.

• The gas spring will be suited to the load to be lifted
• The standard system can lift panels weighing up to 20 kg
• A higher load capacity is available on request

• Overall length : 300 mm (view from below)
• Overall width (height) : 64 mm (side view)
• Length of the main body (side view) : 175 mm
• Length of the side sections (side view) : 19.1 mm and 19.3 mm
• Length of articulated arms (view from below) : 300 mm each

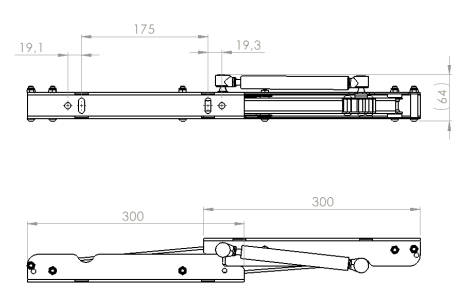

Note: The dimensions are taken from the annotations on the technical drawing. The values are in millimetres (mm), as indicated by the implicit units on the dimensions.
