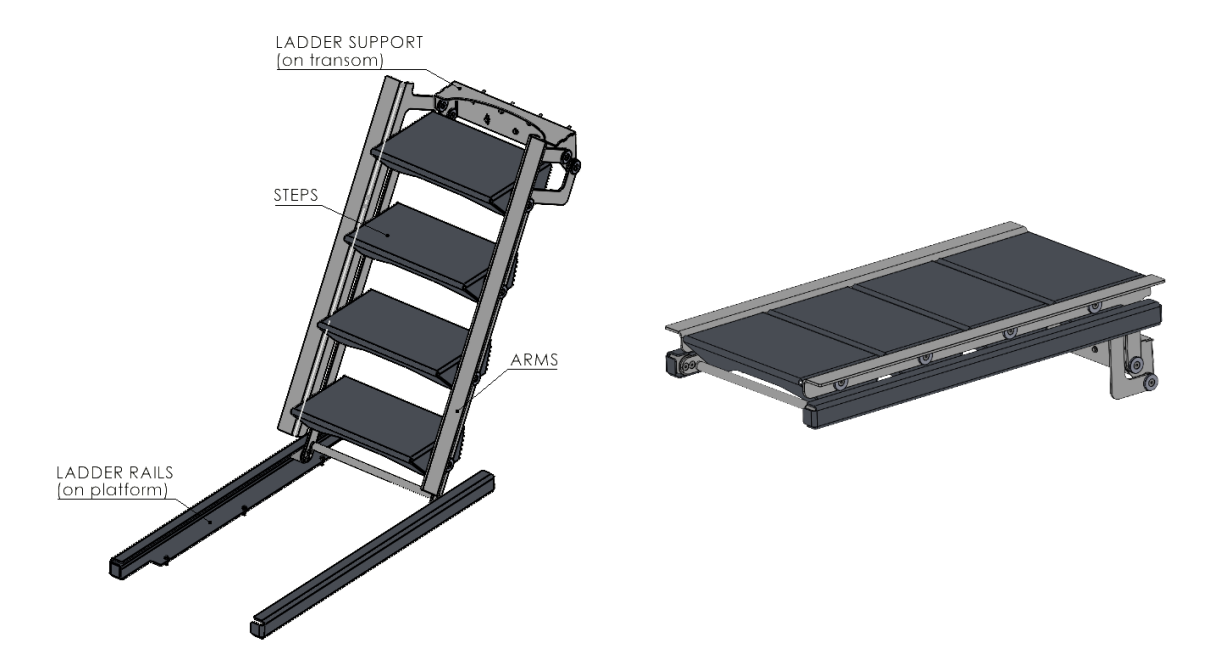

Platform ladders

This ladder provides comfortable and safe access between the deck and the platform.

• Customisable number of steps
• Kinematics designed to suit the platform’s movement
• No power supply required: tracks the position of the platform
• There is no gap between the steps when they are folded away
• Powder-coated aluminium rails and steps (other finishes available on request)
• Bracket and arm made from 316L stainless steel with a powder-coated finish (other finishes available on request)

• Total length (horizontal) : 1030 mm
• Overall height (vertical) : 534 mm
• Thickness / depth (bottom base) : 110 mm
• Height of the inclined mechanism (side view) : 909 mm
• Width of the inclined mechanism (horizontal projection) : 216 mm
• Height of the inclined arm (vertical segment) : 220 mm
• Arm angle of inclination : 107°
