Suitable for marine environments, made from 316 stainless steel with a mirror-polished finish
Electric servomotor, available in 12 V or 24 V
Mounting bracket for multiple anchors, up to 25 kg

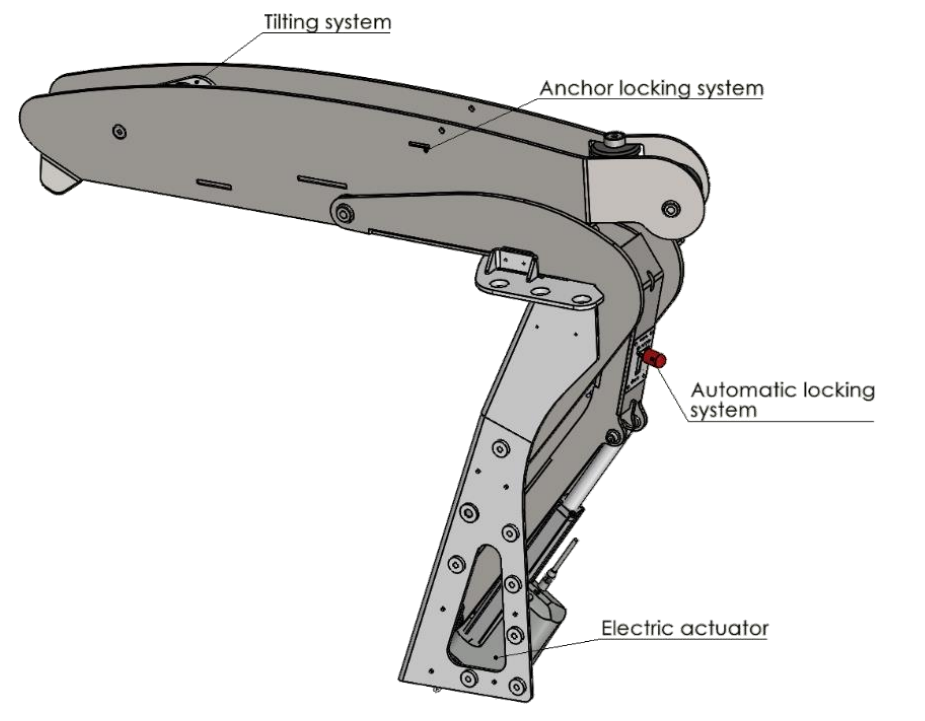

User safety, thanks to an inductive position sensor
Automatic locking system, to ensure the user’s safety
Anchor locking system, to prevent any movement whilst at sea
Weight: approximately 130 kg

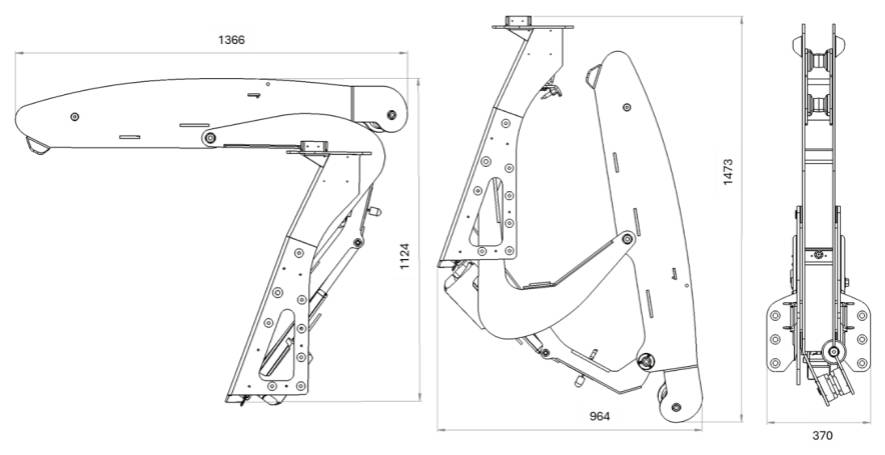

Dimensions
Overall length (front view) : 1366 mm
Overall height (front view) : 1124 mm
Overall height (side view) : 1473 mm
Maximum width (side view) : 964 mm
Thickness / depth (side view) : 370 mm
Information request
Would you like to receive a technical document, product information or study a specific project? Don't hesitate to contact us using the form below or by telephone on +33 5 34 47 00 09.
Bespoke adaptation
NOVAL Marine Systems works with its customers to tailor its products to meet the specific requirements of each project.
